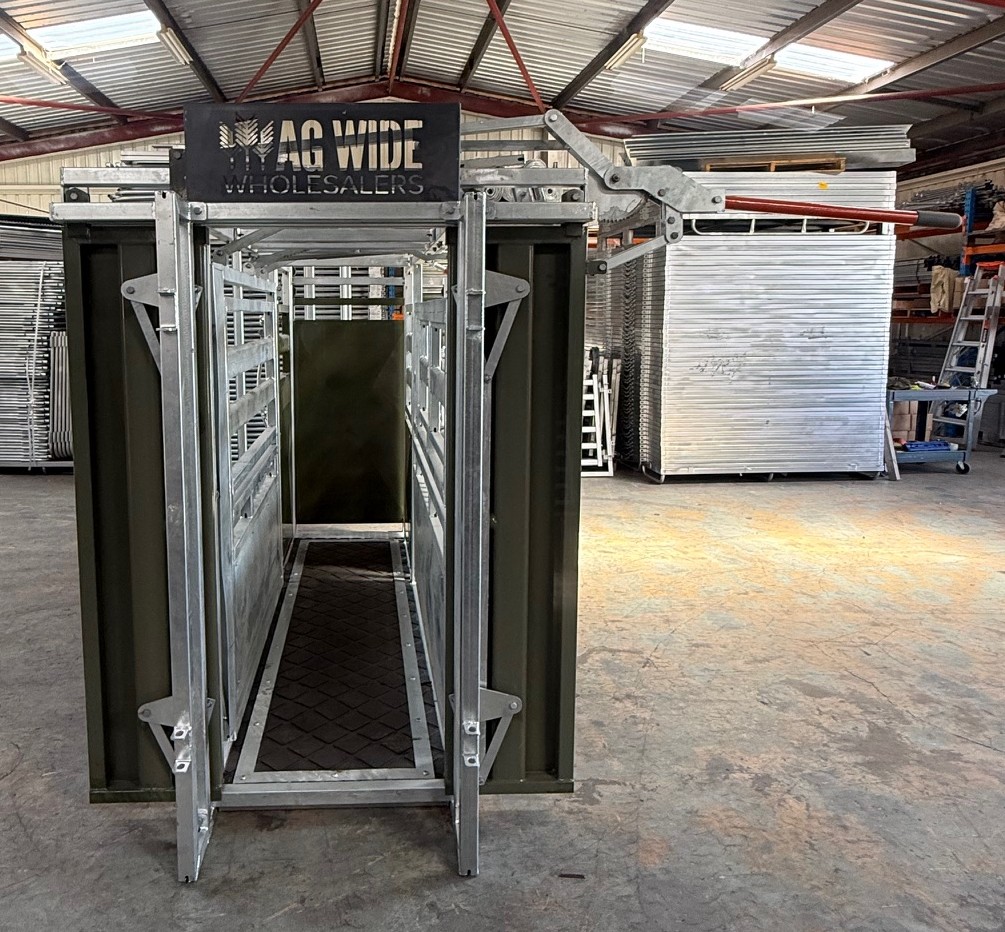

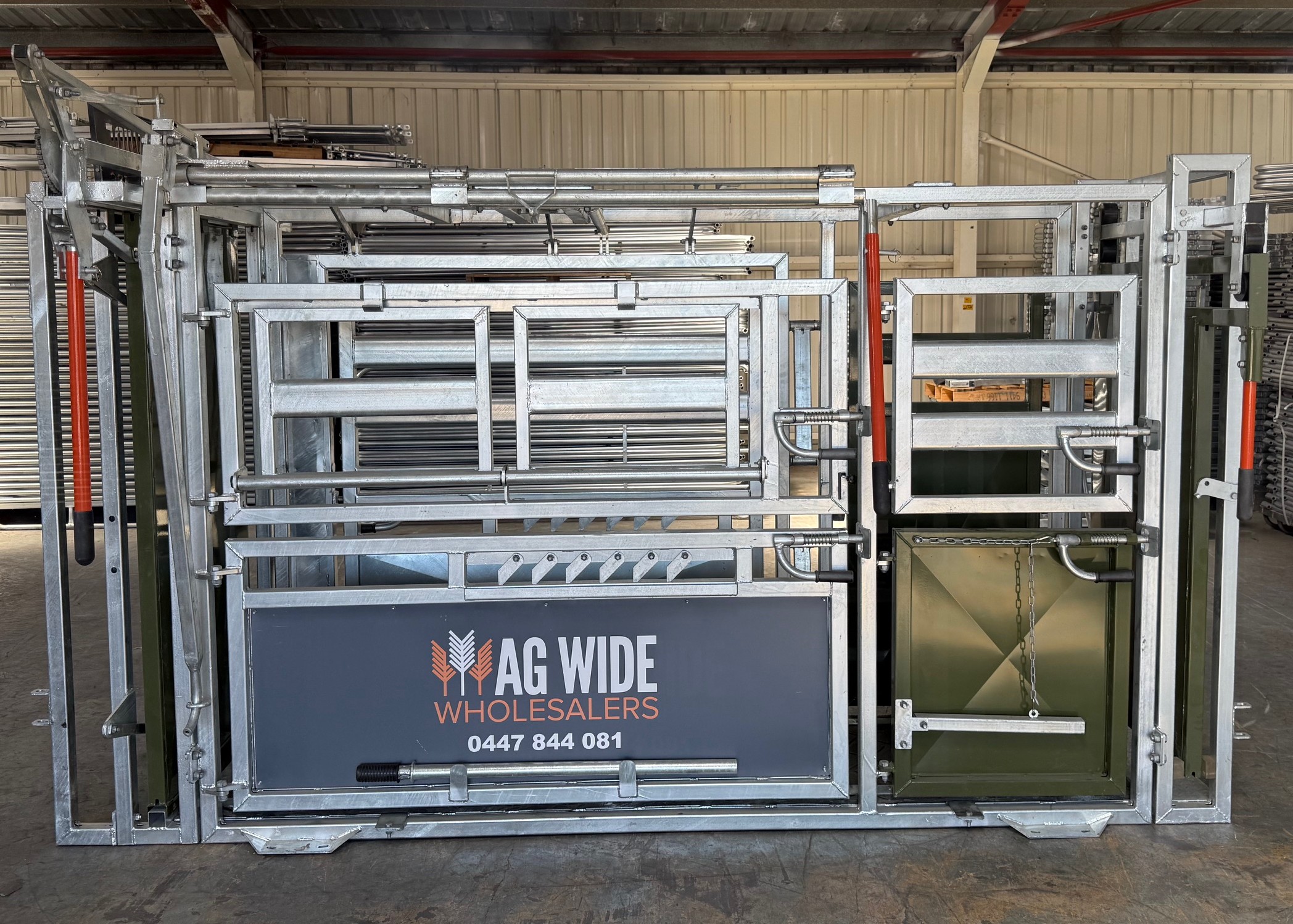

CZ005 – ULTIMATE VET STYLE CATTLE CRUSH – SIDE SQUEEZE

Description

  • Premium Vet Access Crush – With Single Sided Parallel Mechanical Squeeze Sing
  • “Hot Dipped Galvanized steel”500gram
  • 2200mm H x 3400mm L x 850mm (1850 wide overall with lever arms)
  • Inner Width 720mm
  • Vertical Tubes 75mm x 50mm  & 50 x 50mm
  • Horizontal Rails: 50 x 50mm – heavy duty with Side sheeting
  • Strong 2mm Thickness Tube
  • Quality Ratchet Head Bale Assembly – with front & rear activation
  • Head bale- Slight neck groove
  • Push Bar – with ratchet.
  • Full Vet rear access doors, foot activation latches – pedal activation
  • Side access doors with inward outward swing and inward squeeze option
  • Rear slide gate is activated from both sides.
  • Steel floor with weight bar mounting plates.
  • With all accessories
  • Flat Packed or built units available
  • 575 Kg
  • $6,300.00 including GST. (built unit)
  • Chin Bar available @ $250
  • A quality heavy duty: HOT DIPPED GALVANISED “crush assembly!
  • Weight bar and scale compatible – units also for sale
  • Note: These units are amazing, using a quality lever handle mechanism for the head bale operation with a heavy-duty ratchet assembly. Australian designed, suiting the professional farmer. Built to Last!!
